Home Technical Resources City Common Solar Street Light Solution

City Common Solar Street Light Solution

Post time: 2022-06-22 18:16:31

The city common street is mainly for vehicles and personnel passage. The road width is generally 6-8 Meters. The cars there is not too fast. Before the midnight, there is large traffic flow and after the midnight , the traffic flow is small. Therefore, the application scene of the street requires that the brightness of the solar lamp should be relatively high, the scope of coverage be relatively large, and the uniformity of light be relatively good. In particular, we should ensure the lighting effect in the early night.

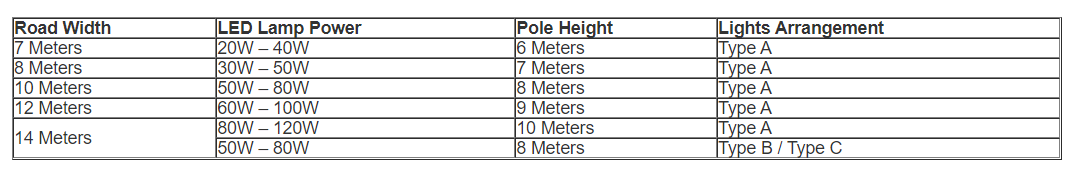

SOLUTION - Recommended Configurations

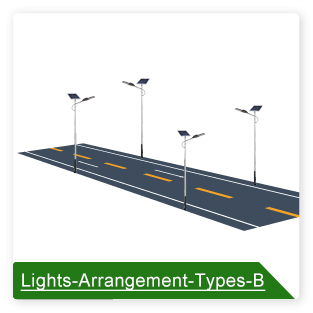

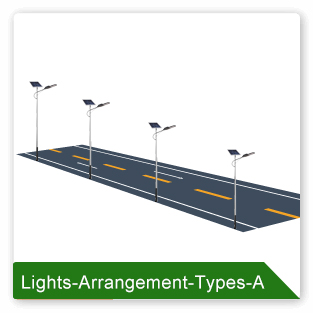

SOLUTION - Lights Arrangement Types

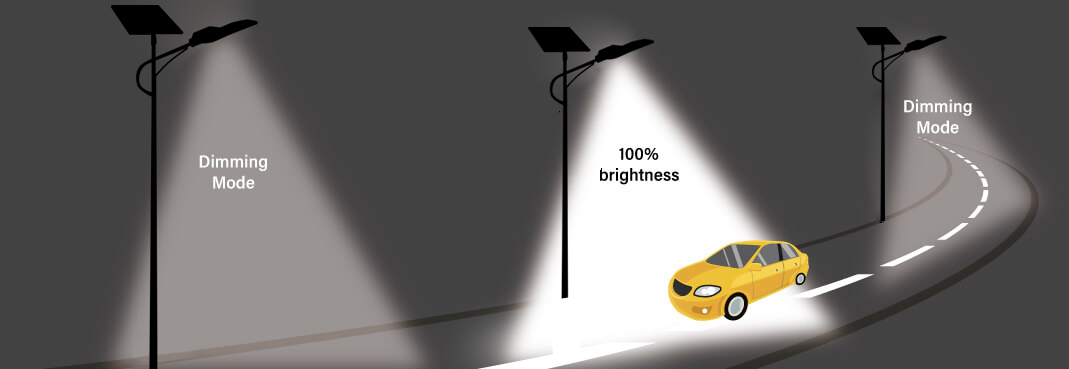

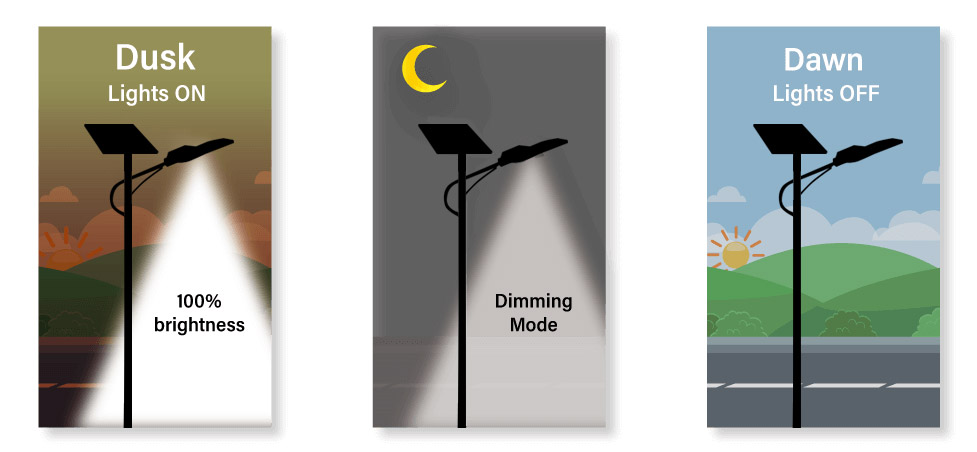

Working Mode Options

The Structure And Composition Of Solar Street Lights

Solar street lights can basically be divided into traditional split solar street lights and integrated solar street lights. They all combine components such as high-efficiency solar panels, long-life lithium batteries or lead-acid batteries, high-efficiency LED street lights, and smart controllers into an independent system (integrated solar street lights often also include PIR human body induction Module, anti-theft mounting bracket).

Solar panels: The main function of solar panels is to convert light energy into electrical energy. It is one of the core components in the entire solar street light system. It mainly includes monocrystalline silicon solar panels and polycrystalline silicon solar panels.

Solar battery: The battery is mainly used to store electricity. Currently, the market mainly includes lead-acid batteries (AGM and GEL batteries) and lithium batteries (ternary lithium batteries and LiFePo4 Batteries).

Solar street light fixture: the light-emitting part of the solar street light system. Composed of the LED light source.

The Working Principle Of Solar Street Lights

Solar street lights use solar panels to receive solar energy during the day and convert them into electrical energy, which is stored in the battery through the discharge controller. The illumination gradually decreases at night. The charge and discharge controller detects this value and works, and the battery discharges to the lamp holder. After the battery is discharged for 10 hours, the charge-discharge controller starts, and the battery discharge ends. The main function of the charge and discharge controller is to control the lighting and correlation of street lights while protecting the battery and prolonging the service life of the battery.
